Dynapac DFP Series Forward Plates: Precision Compaction in Tight Spaces

When the job requires maneuverability without sacrificing compaction force, the Dynapac DFP Series Forward Plate Compactors deliver. Engineered for hard-hitting performance in confined areas, these streamlined compactors are the ultimate tool for landscaping, trench work, block paving, and asphalt patching.

Whether you are working with granular soils or hot mix asphalt, the DF series combines raw power with exceptional operator comfort, ensuring your crew can work longer, safer, and more efficiently.

Engineered for the Operator and the Bottom Line

Dynapac designed the DFP series to solve the most common frustrations on the job site: operator fatigue, premature equipment wear, and cumbersome maintenance.

Class-Leading Operator Comfort

Operator fatigue slows down the job. The DFP series features Dynapac’s vibration-dampened “comfort handle,” which reduces Hand-Arm Vibration (HAV) values to below 2.5 m/s². This allows your crew to operate the equipment smoothly for full shifts without exceeding safe exposure limits. The handle is also foldable, making transportation in standard trucks or vans completely hassle-free.

Self-Cleaning, High-Wear Base Plate

Downtime from jammed debris is eliminated. The heavy-duty base plate utilizes an open-style construction that prevents stones and asphalt from sticking. Because material doesn’t get trapped, the wear and tear on the plate and internal components are significantly reduced. For asphalt-specific models (like the DFP7AX), the edges are engineered to leave a flawless, mark-free finish on the mat.

Rugged Power & Protection

Powered by ultra-reliable Honda GX (gasoline) or Hatz (diesel) engines, the DFP series provides relentless compaction force. The powerpack is guarded by a heavy-duty tubular frame or metal cover to survive the inevitable bumps and drops on a busy site. Additionally, the fully enclosed V-belt drive maximizes belt lifespan by keeping out abrasive sand and gravel.

Unmatched Versatility

The DFP series isn’t a one-trick pony. With a few simple attachments, these compactors adapt to whatever the site demands:

• Asphalt Patching: Models equipped with the high-capacity, corrosion-free water sprinkler system ensure the plate glides over hot asphalt without sticking. The system is easily adjustable and drains without tools.
• Block Paving: Attach the optional block paving mat to gently vibrate interlocking pavers into place without cracking or scuffing the surface.
• Confined Soil Compaction: Perfect for compacting sub-bases in narrow trenches, alongside foundations, or around utility poles where larger rollers cannot reach.

At a Glance: DFP Series Specifications

While specific numbers vary by model (from the ultra-light DFP5 to the heavy-hitting DFP10D), the series shares a commitment to high-frequency compaction.

Feature	Specification Range
Operating Weight	127 lbs (65 kg) – 229 lbs (104 kg)
Plate Widths	11.0 inches – 19.7 inches
Power Plant	Honda GX (Gas) or Hatz 1B20 (Diesel)
Max Working Speed	Up to 98 ft/min (25 m/min)
Max Gradeability	30%
Safety Features	Automatic low-oil shutdown, enclosed V-belt

Job Site Bonus: Every unit features a perfectly balanced one-point lifting hook and available puncture-proof transport wheels, making it easy for a single operator to move the machine around the site.

Dynapac DFP Series Model Breakdown

The DFP Series offers a highly specific tool for every compaction job. Whether your crew needs a lightweight trench plate or a heavy-duty diesel workhorse, the lineup is categorized to meet exact site requirements:

The Ultra-Compacts: DFP5X & DFP6

Engineered for the tightest confines, these lightweight units are incredibly easy to handle and transport, making them favorites for landscapers and utility workers.

• Operating Weight: 119 lbs (54 kg) – 143 lbs (65 kg)
• Engine: Honda GXR120 / GX120 (Gasoline)
• Best For: Narrow trench work, light landscaping, and areas where larger machines physically cannot fit.

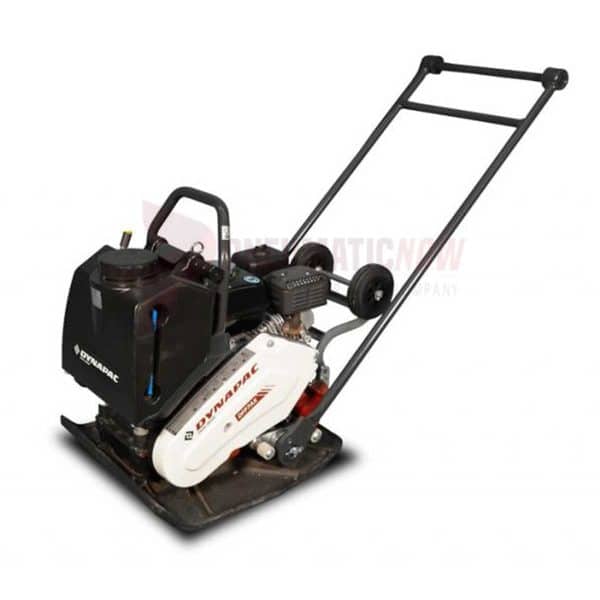

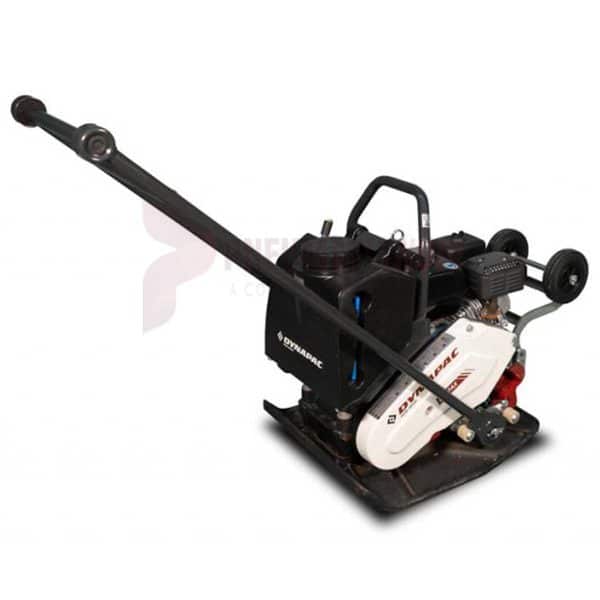

The Asphalt Specialist: DFP7AX

Designed specifically for hot mix asphalt and patching, this model prevents the common issue of plates digging into and scarring the mat.

• Operating Weight: 181 lbs (82 kg)
• Engine: Honda GX120 (Gasoline)
• Best For: Pothole repairs, driveway edges, and municipal asphalt patching.
• Key Feature: Features a specially chamfered base plate for a mark-free finish and comes standard with a high-capacity water sprinkler system.

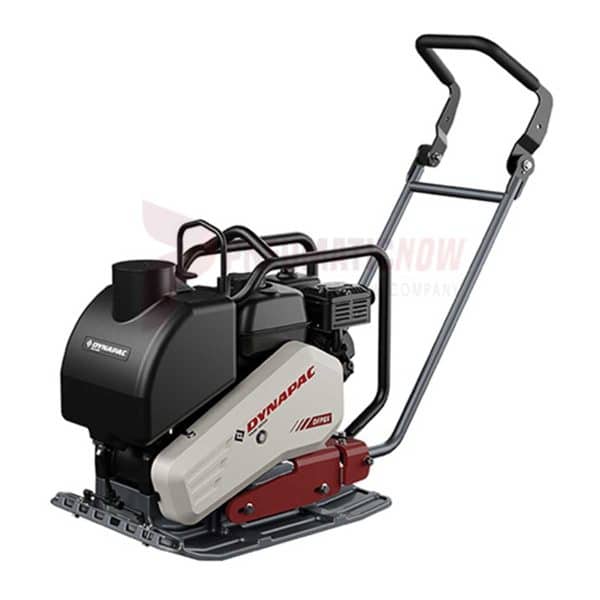

The Mid-Size Workhorses: DFP8X & DFP9

The “Goldilocks” of the lineup—these models provide the ideal balance of maneuverability and raw compaction force. They are standard fixtures on general construction sites.

• Operating Weight: 198 lbs (90 kg) – 200 lbs (91 kg)
• Engine: Honda GX160 (Gasoline)
• Best For: Sand, gravel, granular soils, and block paving (with optional mat).

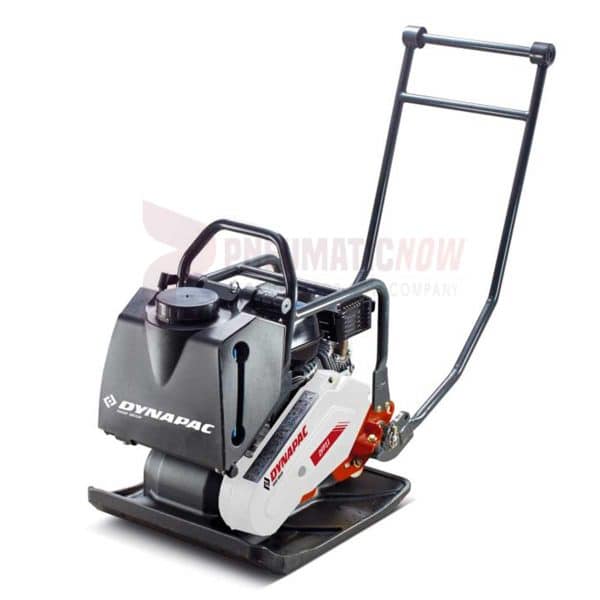

The Heavyweight Gas Model: DFP11

When you need maximum compaction depth but prefer the simplicity and ease of starting a gasoline engine, the DFP11 delivers.

• Operating Weight: 238 lbs (108 kg)
• Engine: Honda GX160 (Gasoline)
• Best For: Deep sub-base compaction and large surface areas.
• Key Feature: Utilizes a wide 19.7-inch base plate and hits a high working speed of 98 ft/min to cover ground rapidly.

The Diesel Powerhouses: DFP10D & DFP12D

Built for commercial sites, heavy-duty applications, and rental fleets that demand maximum longevity. These models hit incredibly hard and use less fuel during long shifts.

• Operating Weight: 229 lbs (104 kg) – 268 lbs (122 kg)
• Engine: Hatz 1B20 (Diesel)
• Best For: Heavy commercial sites, rental fleets, and job sites with strict “diesel-only” fuel policies.
